Taegutec LCD 260-269-32T2-5D

Product Code: 3204835

$1,056.76$960.69 Ex. GST

Product Code: 3204835 SKU 3204835 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

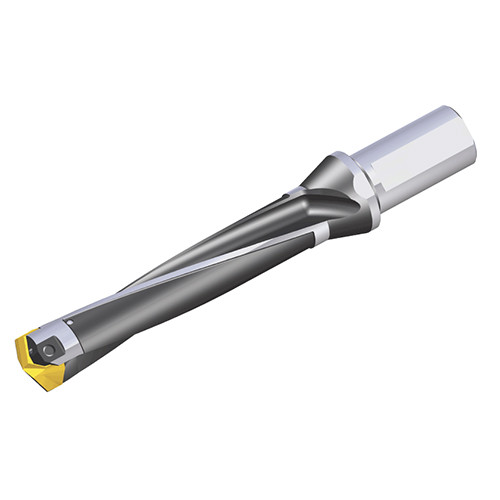

SPADERUSH head changeable drill of large diameter for high productivity with coolant holes in drilling depth of 5XD

Additional information

Weight 0.2800 kg
barcode
Additional Information

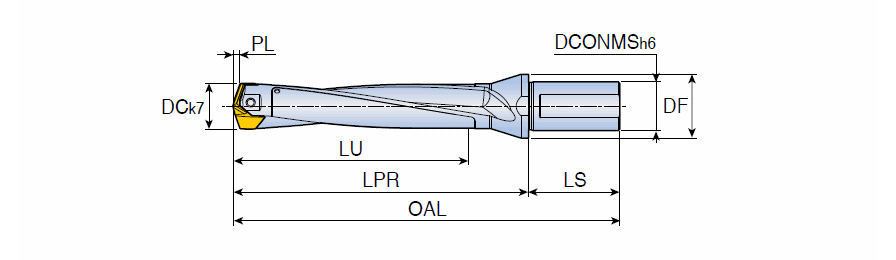

Cutting Diameter (DC): 26 mm
Point Length (PL): 4.04 mm
Application:, Drilling, Master Insert Identification (MIID): LCD-260-P
Protruding Length (LPR): 169 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Insert Seat Size Code (SSC): 26
Body Material: Steel
Measurement Type: Metric
Unit: M

Brand

Taegutec
