Taegutec LCD 340-349-40T2-5D

Product Code: 6133584

$1,221.99$1,110.90 Ex. GST

Product Code: 6133584 SKU 6133584 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

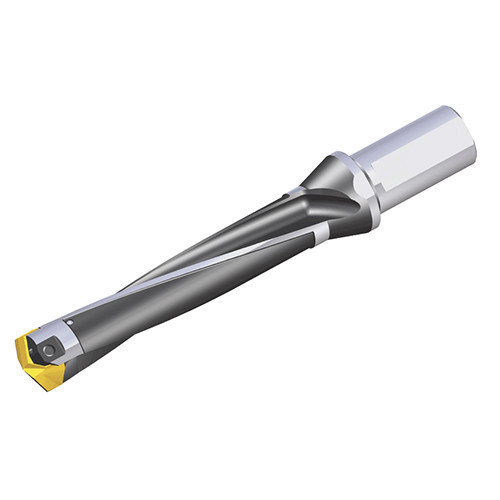

SPADERUSH head changeable drill of large diameter for high productivity with coolant holes in drilling depth of 5XD

Additional information

Weight 1.6700 kg
barcode
Additional Information

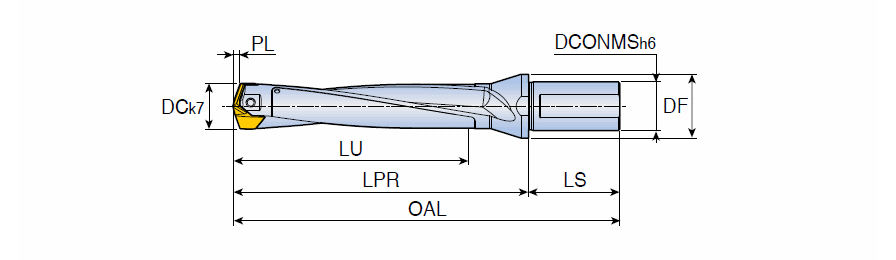

Cutting Diameter (DC): 34 mm
Point Length (PL): 5.34 mm
Application:, Drilling, Master Insert Identification (MIID): LCD-340-P
Protruding Length (LPR): 217.3 mm
Connection Diameter Machine Side (DCONMS): 40 mm
Insert Seat Size Code (SSC): 34
Body Material: Steel
Measurement Type: Metric
Unit: M

Brand

Taegutec
