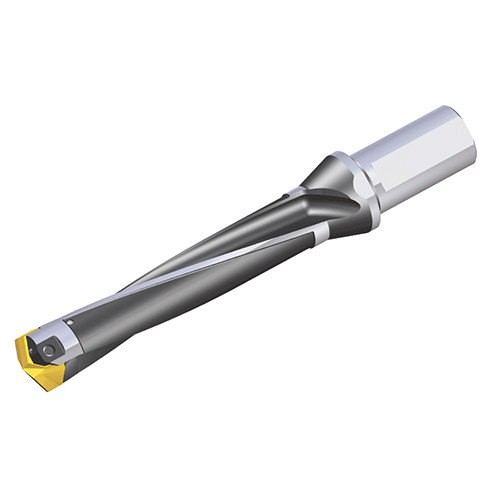

Taegutec LCD 390-399-40T2-5D

Product Code: 6133588

$1,347.97$1,225.43 Ex. GST

Product Code: 6133588 SKU 6133588 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

SPADERUSH head changeable drill of large diameter for high productivity with coolant holes in drilling depth of 5XD

Additional information

Weight 2.0500 kg
barcode
Additional Information

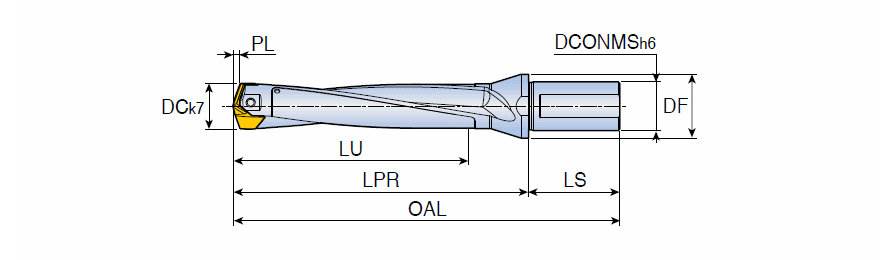

Cutting Diameter (DC): 39 mm
Point Length (PL): 6.09 mm
Application:, Drilling, Master Insert Identification (MIID): LCD-390-P
Protruding Length (LPR): 248.1 mm
Connection Diameter Machine Side (DCONMS): 40 mm
Insert Seat Size Code (SSC): 39
Body Material: Steel
Measurement Type: Metric
Unit: M

Brand

Taegutec
