Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec LNMM 401224L-HX TT7100
$219.64$199.67 Ex. GST

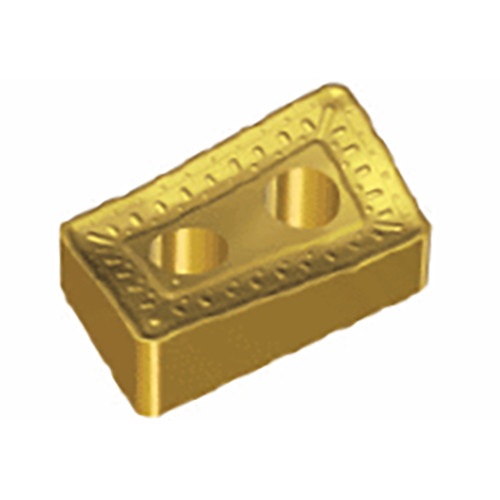

40 mm helical edge length insert with two lever holes for Heavy turning of axial and radial direction
Applicable Material:, Steel, Grade: TT7100 Application:, Ext 95° App 80°HeavyDuty, Inserts, Min D.O.C.: 6 mm Corner Radius (RE): 2.38 mm Depth of Cut Maximum (APMX): 32 mm Cutting Edge Length (L): 40.6 mm Min. Turning Feed (ft(min)): 0.7 mm/rev Insert Thickness (S): 11.65 mm Max. Turning Feed (ft(max)): 1.5 mm/rev Inscribed Circle Diameter (IC): 25.4 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
$169.19$153.81 Ex. GST
$151.09$137.35 Ex. GST
$135.81$123.46 Ex. GST
$66.20$60.18 Ex. GST
$31.99$29.08 Ex. GST
