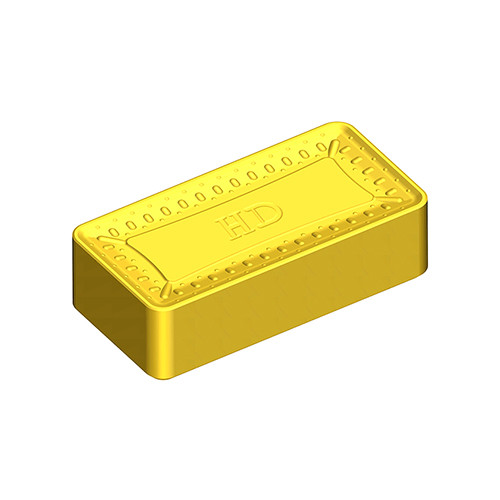

Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec LNMX 501432 HD TT7100
$286.48$260.44 Ex. GST
Inserts with two blind clamping holes with 50 mm cutting edge length for continuous heavy turning
Applicable Material:, Steel, Grade: TT7100 Application:, Ext 75° App 90°HeavyDuty, Inserts, Min D.O.C.: 6 mm Corner Radius (RE): 3.2 mm Depth of Cut Maximum (APMX): 40 mm Cutting Edge Length (L): 50.8 mm Min. Turning Feed (ft(min)): 0.7 mm/rev Insert Thickness (S): 14.2 mm Max. Turning Feed (ft(max)): 1.6 mm/rev Inscribed Circle Diameter (IC): 25.4 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
