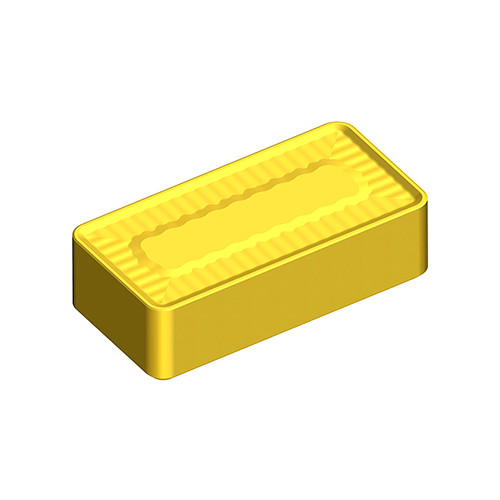

Taegutec LNMX 501432 HY TT9225

Product Code: 5522985

$286.48$260.44 Ex. GST

Product Code: 5522985 SKU 5522985 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Inserts with two blind clamping holes with 50 mm strong cutting edge length for Interrupted heavy turning

Weight	0.2441 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT9225 Application:, Ext 75° App 90°HeavyDuty, Inserts, Min D.O.C.: 5 mm Corner Radius (RE): 3.2 mm Depth of Cut Maximum (APMX): 40 mm Cutting Edge Length (L): 50.8 mm Min. Turning Feed (ft(min)): 0.65 mm/rev Insert Thickness (S): 14.2 mm Max. Turning Feed (ft(max)): 1.5 mm/rev Inscribed Circle Diameter (IC): 25.4 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al203+TiCN Unit: M
