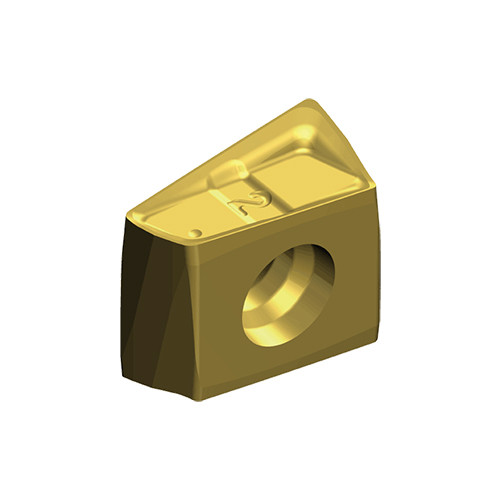

Taegutec LPHU 090404 PNR-M TT8080

Product Code: 6191550

$43.27$39.34 Ex. GST

Product Code: 6191550 SKU 6191550 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec LPHU 090404 PNR-M TT8080

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Ground type tangential inserts of 4 cutting edges with sharp geometry

Additional information

Weight	0.0040 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Trochoidal Milling, Cutting Edge Material: Carbide Corner Radius (RE): 0.4 mm Minimum Feed per Tooth (fz(min)): 0.06 mm/tooth Depth of Cut Maximum (APMX): 6 mm Number of Cutting Edges: 4 Insert Thickness (S): 8.6 mm Measurement Type: Metric Coating: TiAlN+TiN Body Material: Carbide Grade: TT8080 Unit: M

Brand

Taegutec
