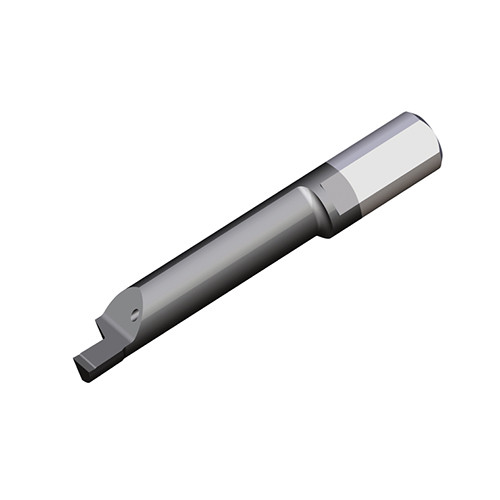

MINF: Mini carbide bars for face grooving of Dmin = 6.0 – 8.0 mm
Additional information
Weight
0.0168 kg
Dimensions
barcode
Additional Information

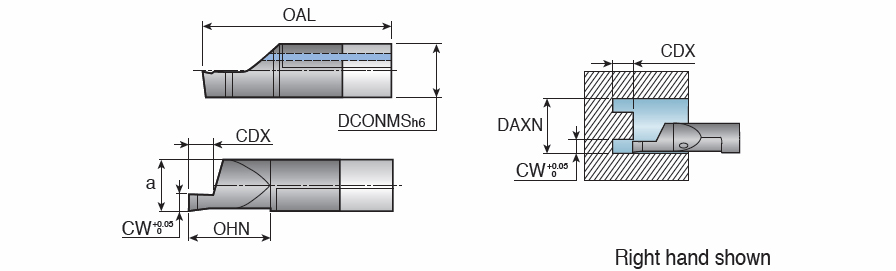

Connection Diameter Machine Side (DCONMS): 7 mm
Cutting Depth Maximum (CDX): 3 mm
Minimum Bore Diameter (DMIN): 8 mm
Body Material: Carbide
Cutting Direction (HAND): Right Hand
Cutting Edge Material: Carbide
Coating: TiAlN
Measurement Type: Metric
Grade: TT9030
Overall Length (OAL): 36 mm
Application:, Face Grooving, Int. Face Grooving, Mini carbide bars, Tools for Swiss Machines, Cutting Width (CW): 2 mm
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Unit: M
Front End Width (a): 2 mm
