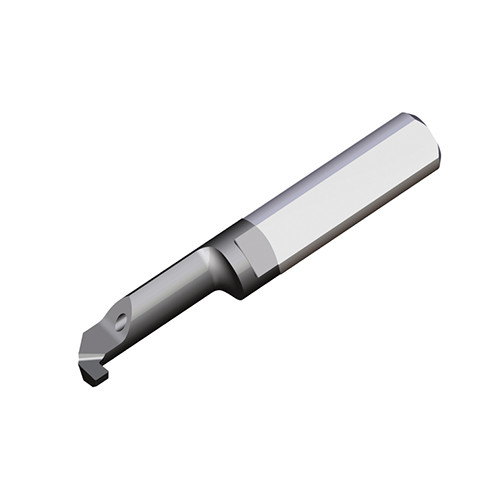

MING: Mini carbide bars for grooving and turning in Dmin = 2.0 – 6.8 mm
Additional information
Weight
0.0130 kg
Dimensions
barcode
Additional Information

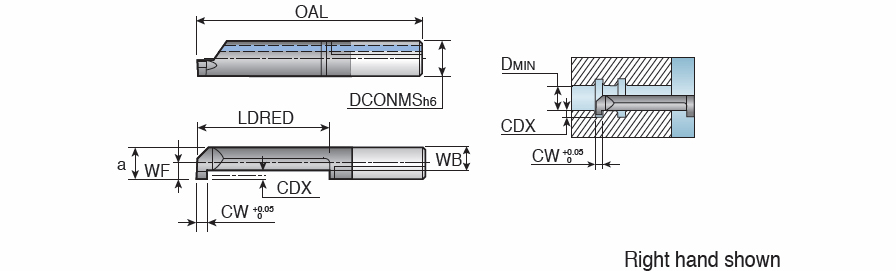

Connection Diameter Machine Side (DCONMS): 7 mm
Cutting Depth Maximum (CDX): 1.8 mm
Minimum Bore Diameter (DMIN): 6 mm
Functional Width (WF): 1.8 mm
Cutting Direction (HAND): Right Hand
Body Material: Carbide
Coating: TiAlN
Cutting Edge Material: Carbide
Grade: TT9030
Measurement Type: Metric
Application:, Int. Groove & Turn, Int. Grooving, Mini carbide bars, Tools for Swiss Machines, Overall Length (OAL): 45 mm
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Cutting Width (CW): 2 mm
Front End Width (a): 2 mm
Unit: M
