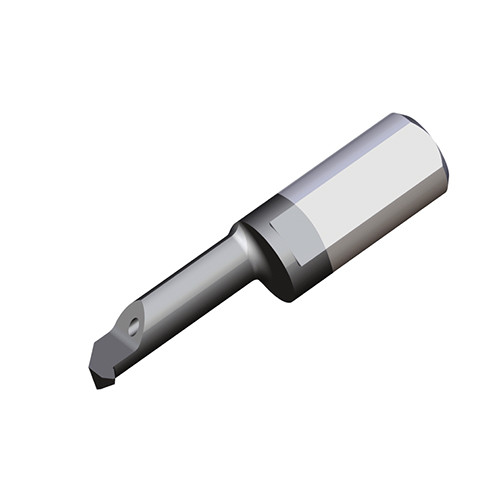

MINI: Mini carbide bars for ISO full profile internal thread turning in Dmin 4.0-7.0 mm
Additional information
Weight
0.0136 kg
Dimensions
barcode
Additional Information

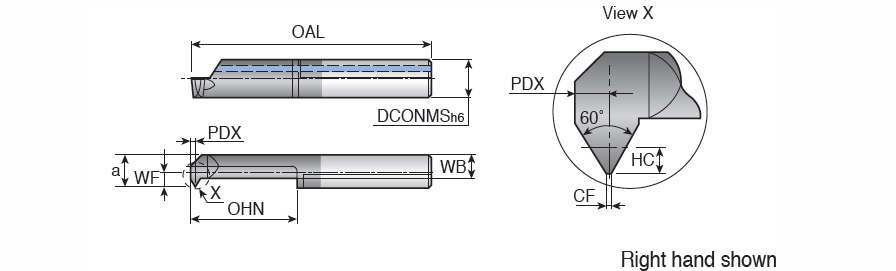

Connection Diameter Machine Side (DCONMS): 7 mm
Central Flat (CF): 0.18 mm
Minimum Bore Diameter (DMIN): 7 mm
Body Material: Carbide
Coating: TiAlN
Cutting Edge Material: Carbide
Grade: TT9030
Depth of Radial Groove: 0.8 mm
Application:, Int. Threading (Groove Turn), Mini carbide bars, Tools for Swiss Machines, Measurement Type: Metric
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Thread Pitch (TP): 1.5 mm
Front End Width (a): 6.3 mm
Overall Length (OAL): 30 mm
Functional Width (WF): 2.8 mm
Unit: M
