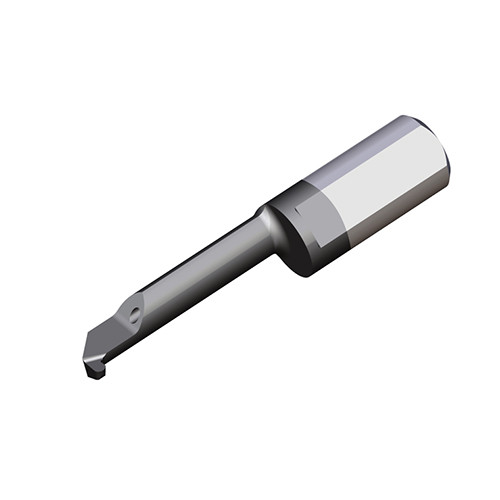

MINR: Mini carbide bars with full radius for internal boring and profiling in Dmin = 5.0 – 6.8 mm
Additional information
Weight
0.0166 kg
Dimensions
barcode
Additional Information

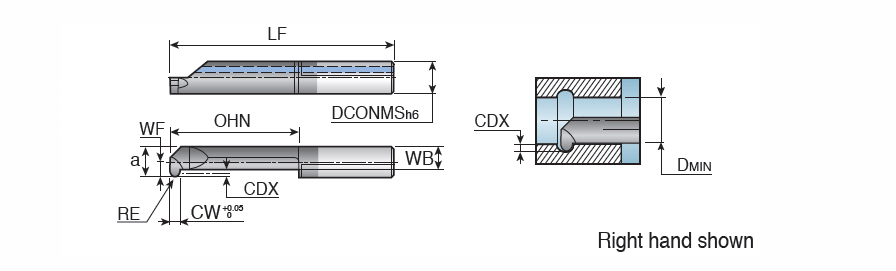

Connection Diameter Machine Side (DCONMS): 7 mm
Cutting Depth Maximum (CDX): 2.5 mm
Minimum Bore Diameter (DMIN): 6.8 mm
Functional Width (WF): 2.8 mm
Cutting Direction (HAND): Right Hand
Body Material: Carbide
Coating: TiAlN
Cutting Edge Material: Carbide
Grade: TT9030
Measurement Type: Metric
Application:, Int. Profiling, Int. turning and profiling, Mini carbide bars, Overall Length (OAL): 45 mm
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Cutting Width (CW): 1 mm
Front End Width (a): 1 mm
Unit: M
Corner Radius (RE): 0.5 mm
