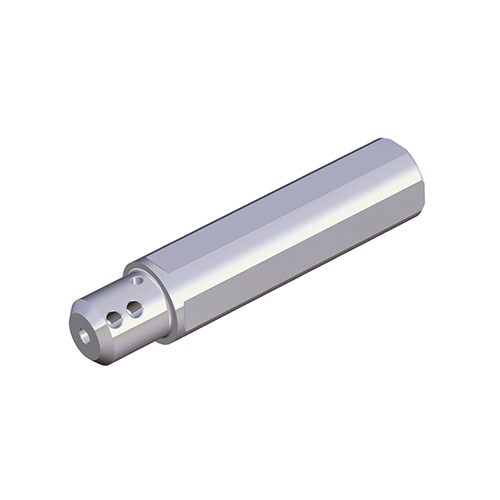

Sleeves for direct connection of coolant & mini carbide bars
Additional information
Weight
0.2300 kg
Dimensions
barcode
Additional Information

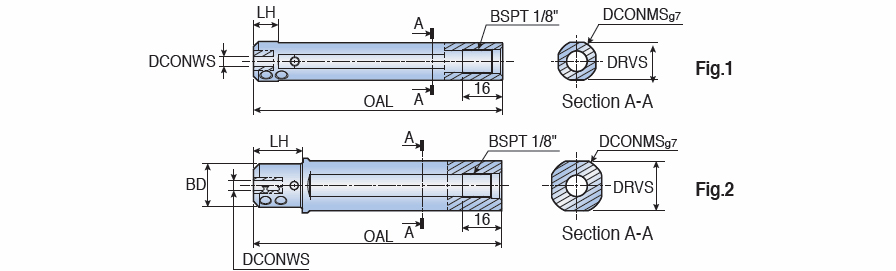

Connection Diameter Machine Side (DCONMS): 22 mm
Shank Type: CYL
Connection Diameter Workpiece Side (DCONWS): 7 mm
Application:, Mini carbide bars, Tools for Swiss Machines, Body Diameter (BD): 17.5
Measurement Type: Metric
Overall Length (OAL): 100 mm
Body Material: Steel
Clamping Length Workpiece Side (LSCWS): 0 mm
Unit: M
Head Length (LH): 20 mm
