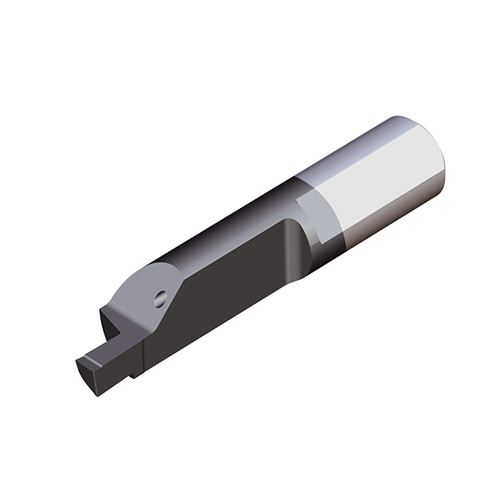

MINS: Mini carbide bars for grooving along shaft in Dmin 6.0 mm
Additional information
Weight
0.0160 kg
Dimensions
barcode
Additional Information

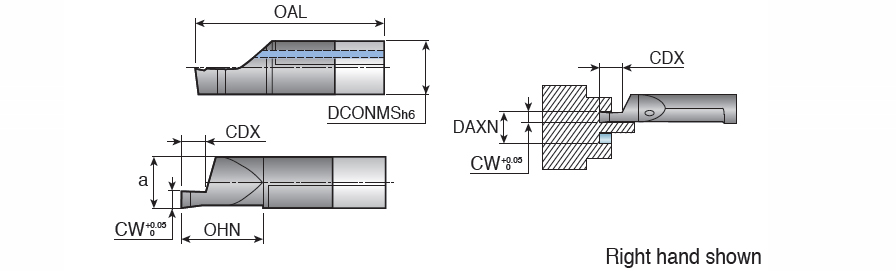

Connection Diameter Machine Side (DCONMS): 7 mm
Cutting Depth Maximum (CDX): 4 mm
Minimum Bore Diameter (DMIN): 6 mm
Body Material: Carbide
Cutting Direction (HAND): Right Hand
Cutting Edge Material: Carbide
Coating: TiAlN
Measurement Type: Metric
Grade: TT9030
Overall Length (OAL): 36 mm
Application:, Face Grooving Along Shaft, Int. Face Grooving, Mini carbide bars, Cutting Width (CW): 2 mm
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Unit: M
Front End Width (a): 2 mm
