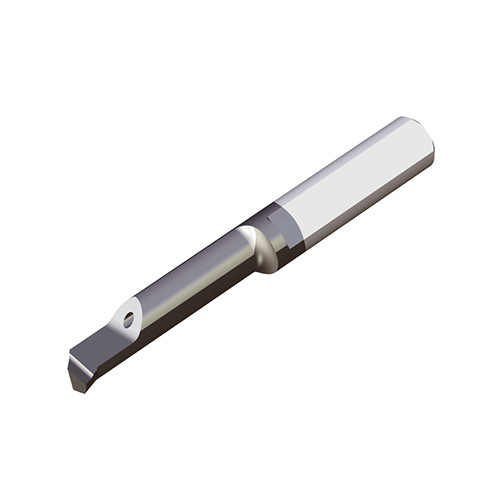

MINT: Mini carbide bars for internal turning and chamfering in Dmin = 0.6 – 4.0 mm
Additional information
Weight
0.0140 kg
Dimensions
barcode

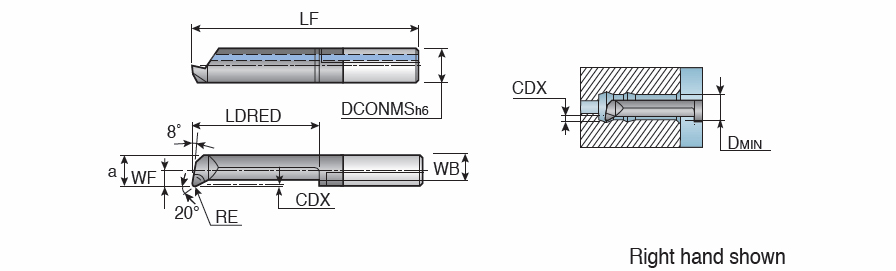

Additional Information
Connection Diameter Machine Side (DCONMS): 4 mm
Corner Radius (RE): 0.1 mm
Minimum Bore Diameter (DMIN): 2.8 mm
Cutting Depth Maximum (CDX): 0.2 mm
Cutting Direction (HAND): Left Hand
Functional Width (WF): 0.9 mm
Coating: TiAlN
Body Material: Carbide
Grade: TT9030
Cutting Edge Material: Carbide
Application:, Int. Turn.& Chamfering, Mini carbide bars, Measurement Type: Metric
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Overall Length (OAL): 35.5 mm
Front End Width (a): 2.6 mm
Unit: M
