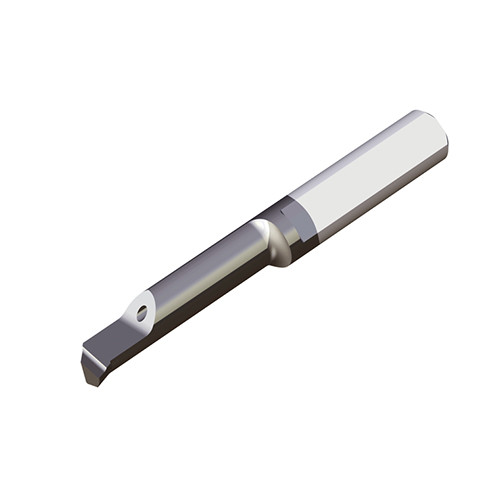

MINT: Mini carbide bars for internal turning and chamfering in Dmin = 5.0 – 7.0 mm
Additional information
Weight
0.0130 kg
Dimensions
barcode
Additional Information

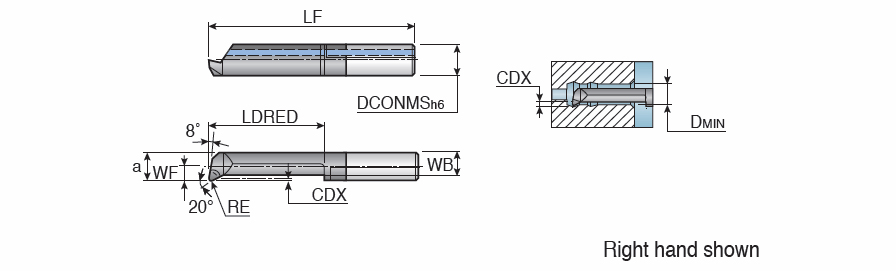

Connection Diameter Machine Side (DCONMS): 7 mm
Corner Radius (RE): 0.15 mm
Minimum Bore Diameter (DMIN): 5 mm
Cutting Depth Maximum (CDX): 0.5 mm
Cutting Direction (HAND): Left Hand
Functional Width (WF): 0.9 mm
Coating: TiAlN
Body Material: Carbide
Grade: TT9030
Cutting Edge Material: Carbide
Application:, Int. Turn.& Chamfering, Mini carbide bars, Measurement Type: Metric
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Overall Length (OAL): 30 mm
Front End Width (a): 4.4 mm
Unit: M
