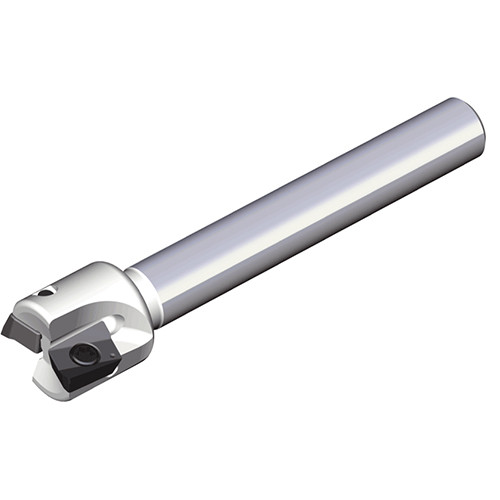

Taegutec MTE90AX 210-06-06-L50

Product Code: 6185228

$386.06$350.96 Ex. GST

Product Code: 6185228 SKU 6185228 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Taegutec MTE90AX 210-06-06-L50 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° End mills dedicated for miniature parts machining in Swiss automatic lathe with high positive ground AXCT inserts of low cutting force replacing solid carbide end mills

Additional information

Weight	0.0650 kg
Dimensions
barcode

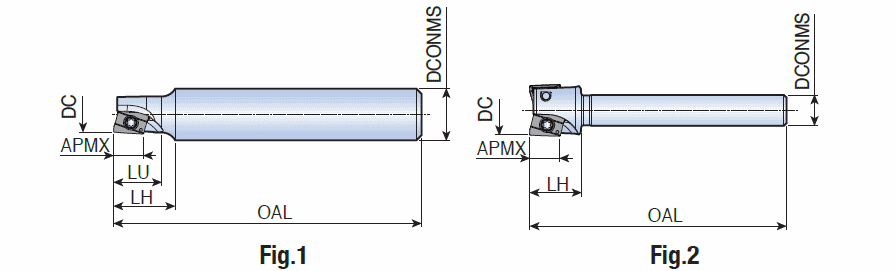

Additional Information	Cutting Diameter (DC/DCX): 10 mm Connection Diameter Machine Side (DCONMS): 6 mm Cutting Diameter (DC): 10 mm Master Insert Identification (MIID): AXMT 0602 PER-EM Cutting Item Count (CICT): 2 Head Length (LH): 10 mm Depth of Cut Maximum (APMX): 5.5 mm Usable Length (LU): – Overall Length (OAL): 50 mm Measurement Type: Metric Shank Type: Round Body Material: Steel Application:, Facing, Shouldering, Slotting, Tools for Swiss Machines, Unit: M
