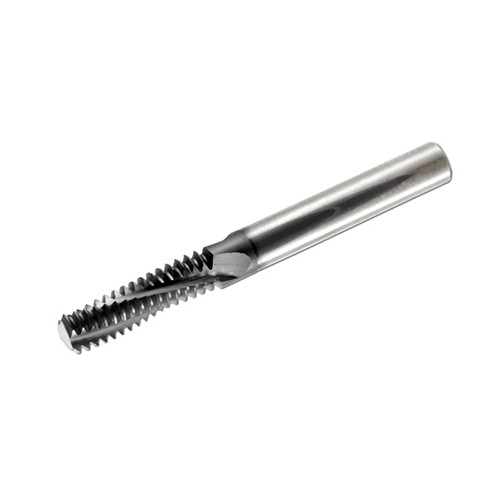

Taegutec MTEC 1616C58 3.0ISO TT9030

Product Code: 6342461

$746.02$678.20 Ex. GST

Product Code: 6342461 SKU 6342461 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Solid carbide internal threading end mills for ISO metric threads

Weight	0.0076 kg
Dimensions
barcode
Additional Information	Thread Size: M24 Application:, Internal Thread Milling, Thread Pitch (TP): 3 mm Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Connection Diameter Machine Side (DCONMS): 16 mm Cutting Edge Material: Carbide Cutting Diameter (DC): 16 mm Usable Length (LU): 58.5 mm Overall Length (OAL): 120 mm Measurement Type: Metric Flute Count (NOF): 3 Grade: TT9030 Shank Type: Round Body Material: Carbide Coating: TiAlN Unit: M
