Taegutec MTECB1615E33 2.5ISO TT9030

Product Code: 6342537

$711.35$646.68 Ex. GST

Product Code: 6342537 SKU 6342537 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

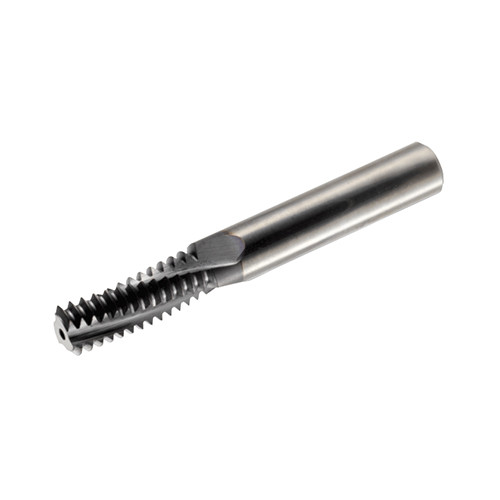

Solid carbide internal threading end mills with coolant holes for ISO metric threads

Weight	0.2516 kg
Dimensions
barcode
Additional Information	Thread Size: M20 Application:, Internal Thread Milling, Thread Pitch (TP): 2.5 mm Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Connection Diameter Machine Side (DCONMS): 16 mm Cutting Edge Material: Carbide Cutting Diameter (DC): 15 mm Usable Length (LU): 33.8 mm Overall Length (OAL): 105 mm Measurement Type: Metric Flute Count (NOF): 5 Grade: TT9030 Shank Type: Round Body Material: Carbide Coating: TiAlN Unit: M
