Taegutec MTECQ 1010D30 1.5ISO TT9030

Product Code: 6342603

$464.30$422.09 Ex. GST

Product Code: 6342603 SKU 6342603 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

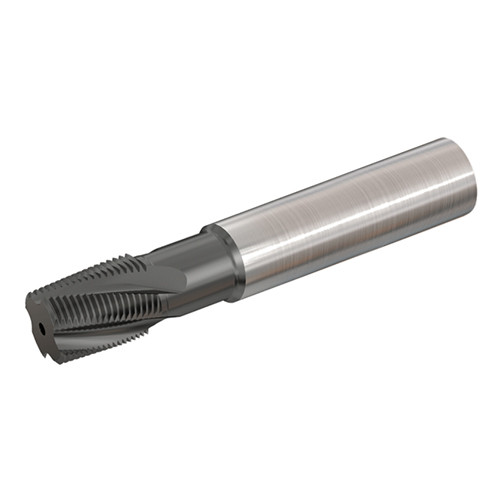

Solid carbide internal threading end mills with coolant holes & reduced diameter neck for deep internal ISO metric threads

Weight	0.0100 kg
Dimensions
barcode
Additional Information	Thread Size: >=13 Application:, Internal Thread Milling, Threads per Inch (TPI): 1.5 Threads/ Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Connection Diameter Machine Side (DCONMS): 10 mm Cutting Edge Material: Carbide Cutting Diameter (DC): 10 mm Usable Length (LU): 18 mm Functional Length (LF): 30 mm Measurement Type: Metric Overall Length (OAL): 73 mm Grade: TT9030 Flute Count (NOF): 4 Body Material: Carbide Shank Type: Round Unit: M Coating: TiAlN
