Taegutec MTECZ 08078C14 28W TT9030

Product Code: 6342582

$552.40$502.18 Ex. GST

Product Code: 6342582 SKU 6342582 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

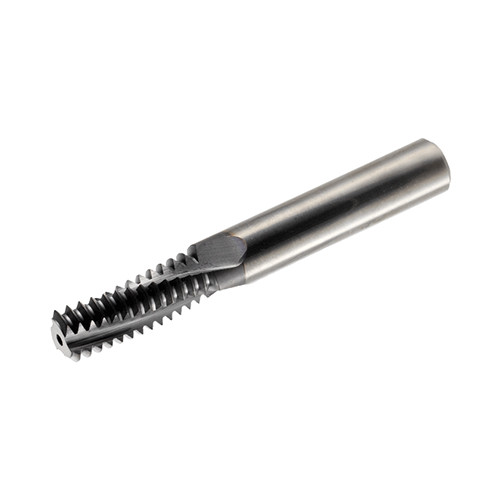

Solid carbide threading end mills with coolant holes located in the flutes for internal or external BSP/BSF threads

Weight	0.0030 kg
Dimensions
barcode
Additional Information	Threads per Inch (TPI): 28 Threads/ Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Connection Diameter Machine Side (DCONMS): 14 mm Cutting Edge Material: Carbide Cutting Diameter (DC): 7.8 mm Usable Length (LU): 14.1 mm Overall Length (OAL): 64 mm Measurement Type: Metric Flute Count (NOF): 3 Grade: TT9030 Shank Type: Round Body Material: Carbide Coating: TiAlN Unit: M Application:, External Thread Milling, Internal Thread Milling
