Taegutec MTECZ 1616D38 11W TT9030

Product Code: 6346396

$956.90$869.91 Ex. GST

Product Code: 6346396 SKU 6346396 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

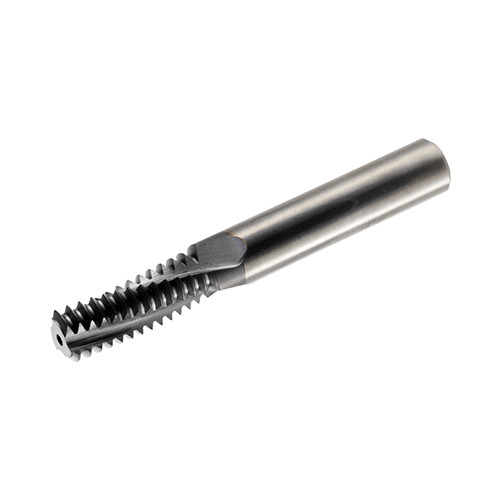

Solid carbide threading end mills with coolant holes located in the flutes for internal or external BSP/BSF threads

Weight	0.0030 kg
Dimensions
barcode
Additional Information	Threads per Inch (TPI): 11 Threads/ Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Connection Diameter Machine Side (DCONMS): 16 mm Cutting Edge Material: Carbide Cutting Diameter (DC): 16 mm Usable Length (LU): 38.1 mm Overall Length (OAL): 101 mm Measurement Type: Metric Flute Count (NOF): 4 Grade: TT9030 Shank Type: Round Body Material: Carbide Coating: TiAlN Unit: M Application:, External Thread Milling, Internal Thread Milling
