Taegutec ‎MXBD080L05-BG-02S05 TT5523

Description

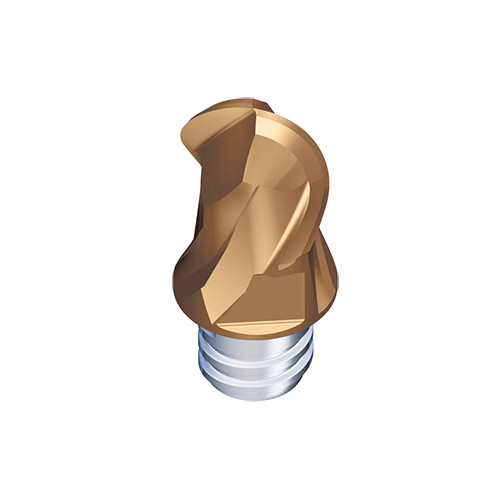

Interchangeable solid carbide Ball nose mill heads with 2 flute for high precision machining

Weight	0.0118 kg
barcode
Additional Information	Application:, Profiling, Solid Carbide End Mills, Flute Helix Angle (FHA): 30 Degrees Cutting Diameter (DC): 8 mm Grade: TT5523 Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN Flute Count (NOF): 2 Measurement Type: Metric Corner Radius (RE): 3.98 mm Cutting Edge Material: Carbide Connection Thread Nominal Size Machine Side (THSZMS): S05 Protruding Length (LPR): 10 mm Depth of Cut Maximum (APMX): 5 mm Body Material: Carbide Connection Diameter Machine Side (DCONMS): 7.7 mm Unit: M Functional Length (LF): 10 mm
