Taegutec ‎MXBD200L15-BG-04S12 TT5523

Description

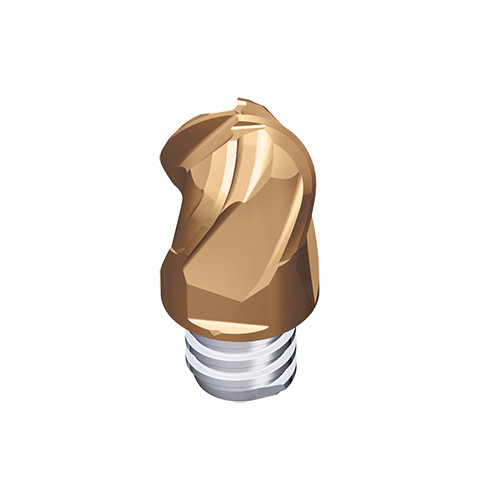

Interchangeable solid carbide Ball nose mill heads with 4 flute for high precision machining

Weight	0.1050 kg
barcode
Additional Information	Application:, Profiling, Solid Carbide End Mills, Flute Helix Angle (FHA): 30 Degrees Cutting Diameter (DC): 20 mm Grade: TT5523 Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN Flute Count (NOF): 4 Measurement Type: Metric Corner Radius (RE): 9.97 mm Cutting Edge Material: Carbide Connection Thread Nominal Size Machine Side (THSZMS): S12 Protruding Length (LPR): 25.5 mm Depth of Cut Maximum (APMX): 15 mm Body Material: Carbide Connection Diameter Machine Side (DCONMS): 18.3 mm Unit: M Functional Length (LF): 25.5 mm
