Taegutec MXBE100L07-BGA02S06 UF10

Description

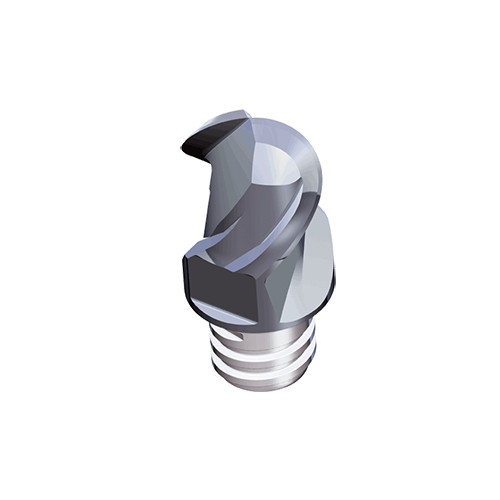

Interchangeable solid carbide Ball nose end mill heads with 2 flute for precision machining of aluminum

Weight	0.0178 kg
barcode
Additional Information	Application:, Profiling, Solid Carbide End Mills, Flute Helix Angle (FHA): 45 Degrees Cutting Diameter (DC): 10 mm Grade: UF10 Applicable Material:, Steel, Stainless Steel, Aluminum / Non-Ferrous Materials, Coating: Uncoated Flute Count (NOF): 2 Measurement Type: Metric Corner Radius (RE): 4.98 mm Cutting Edge Material: Carbide Connection Thread Nominal Size Machine Side (THSZMS): S06 Protruding Length (LPR): 13 mm Depth of Cut Maximum (APMX): 7 mm Body Material: Carbide Connection Diameter Machine Side (DCONMS): 9.7 mm Unit: M Functional Length (LF): 13 mm
