Taegutec ‎MXCA120L05A45-04S08 TT5523

Description

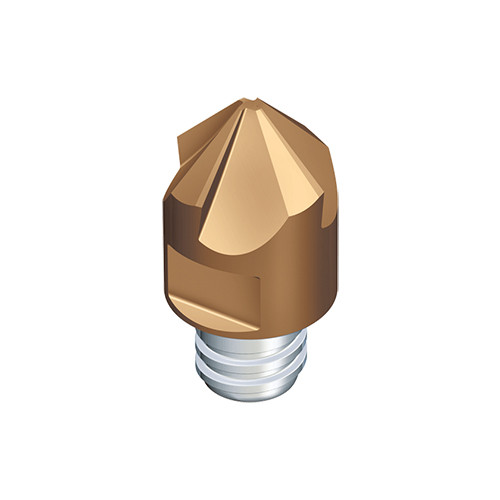

Interchangeable solid carbide heads for Chamfering and Countersinking without central edge

Weight	0.0310 kg
barcode
Additional Information	Application:, Chamfer & Serration, Countersinking, Solid Carbide End Mills, Flute Helix Angle (FHA): 0 Degrees Cutting Diameter (DC): 1.95 mm Grade: TT5523 Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN Flute Count (NOF): 4 Measurement Type: Metric Connection Thread Nominal Size Machine Side (THSZMS): S08 Cutting Edge Material: Carbide Cutting Diameter Maximum (DCX): 12 mm Protruding Length (LPR): 16.5 mm Depth of Cut Maximum (APMX): 5 mm Body Material: Carbide Connection Diameter Machine Side (DCONMS): 12 mm Unit: M Functional Length (LF): 16.5 mm
