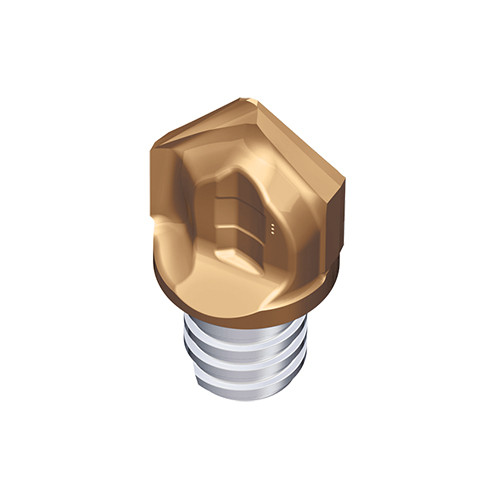

Taegutec ‎MXCP100L09A60-02S06 TT5523

Application:, Chamfer & Serration, Countersinking, Drill Mill, Solid Carbide End Mills, Flute Helix Angle (FHA): 60 Degrees
Cutting Diameter (DC): 1.5 mm
Grade: TT5523
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN
Flute Count (NOF): 2
Measurement Type: Metric
Connection Thread Nominal Size Machine Side (THSZMS): S06
Cutting Edge Material: Carbide
Cutting Diameter Maximum (DCX): 10 mm
Usable Length (LU): 9.5 mm
Depth of Cut Maximum (APMX): 2.7 mm
Protruding Length (LPR): 12.7 mm
Connection Diameter Machine Side (DCONMS): 9.5 mm
Body Material: Carbide
Functional Length (LF): 12.7 mm
Unit: M
