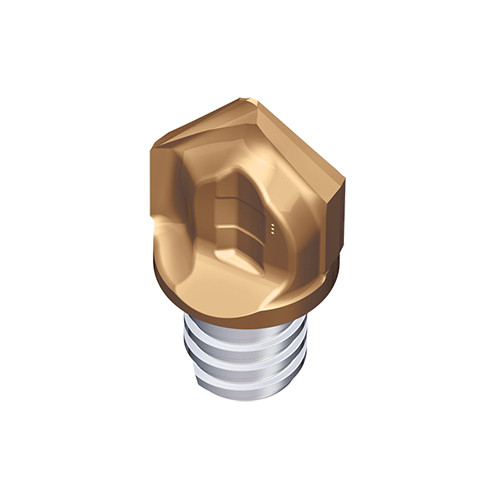

Taegutec ‎MXCP120L12A30-02S08 TT5523

Application:, Chamfer & Serration, Countersinking, Drill Mill, Solid Carbide End Mills, Flute Helix Angle (FHA): 30 Degrees
Cutting Diameter (DC): 1.5 mm
Grade: TT5523
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN
Flute Count (NOF): 2
Measurement Type: Metric
Connection Thread Nominal Size Machine Side (THSZMS): S08
Cutting Edge Material: Carbide
Cutting Diameter Maximum (DCX): 12 mm
Usable Length (LU): 11 mm
Depth of Cut Maximum (APMX): 9.2 mm
Protruding Length (LPR): 15.4 mm
Connection Diameter Machine Side (DCONMS): 11.5 mm
Body Material: Carbide
Functional Length (LF): 15.4 mm
Unit: M
