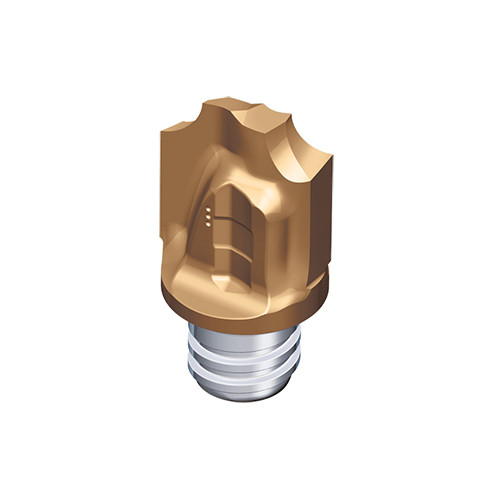

Taegutec ‎MXCR080L07R10-02S05 TT5523

Application:, Chamfer & Serration, Solid Carbide End Mills, Flute Helix Angle (FHA): 0 Degrees
Cutting Diameter (DC): 5.8 mm
Grade: TT5523
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN
Flute Count (NOF): 2
Measurement Type: Metric
Connection Thread Nominal Size Machine Side (THSZMS): S05
Cutting Edge Material: Carbide
Cutting Diameter Maximum (DCX): 8 mm
Protruding Length (LPR): 10.5 mm
Depth of Cut Maximum (APMX): 7.5 mm
Body Material: Carbide
Connection Diameter Machine Side (DCONMS): 7.6 mm
Unit: M
Functional Length (LF): 10.5 mm
