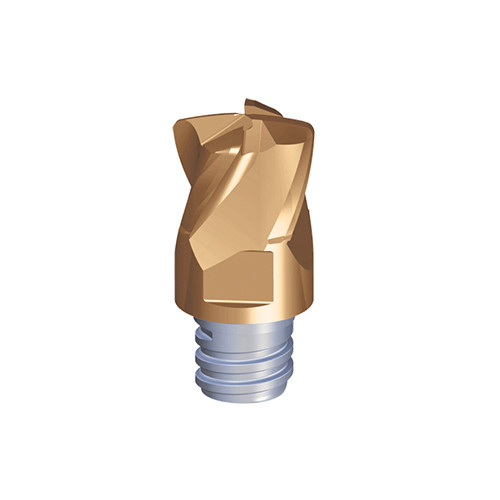

Taegutec MXCSL 4120R024-S08 TT5523

Description

Head changeable solid carbide Lens shape heads with 4 flute for 5-axis profiling with high productivity & better surface finish

Weight	0.0615 kg
barcode
Additional Information	Application:, Profiling, Solid Carbide End Mills, Flute Helix Angle (FHA): 0 Degrees Cutting Diameter (DC): 12 mm Grade: TT5523 Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN Flute Count (NOF): 4 Measurement Type: Metric Corner Radius (RE): 1 mm Cutting Edge Material: Carbide Connection Thread Nominal Size Machine Side (THSZMS): S08 Usable Length (LU): 9 mm Depth of Cut Maximum (APMX): 1.6 mm Protruding Length (LPR): 16.5 mm Connection Diameter Machine Side (DCONMS): 11.7 mm Body Material: Carbide Functional Length (LF): 16.5 mm Unit: M
