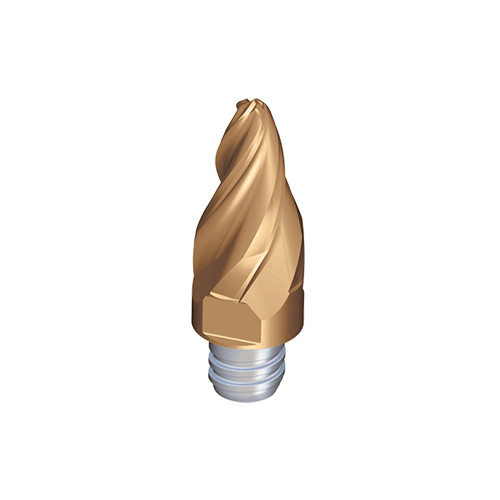

Taegutec MXCSO 4080R080-S05 TT5523

Description

Head changeable solid carbide Oval shape heads with 4 flute for 5-axis profiling with high productivity & better surface finish

Weight	0.0200 kg
barcode
Additional Information	Application:, Profiling, Solid Carbide End Mills, Flute Helix Angle (FHA): 0 Degrees Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT5523 Flute Count (NOF): 4 Coating: AlTiN Corner Radius (RE): 1.5 mm Measurement Type: Metric Connection Thread Nominal Size Machine Side (THSZMS): S05 Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 14.2 mm Protruding Length (LPR): 18 mm Connection Diameter Machine Side (DCONMS): 8 mm Body Material: Carbide Functional Length (LF): 18 mm Unit: M
