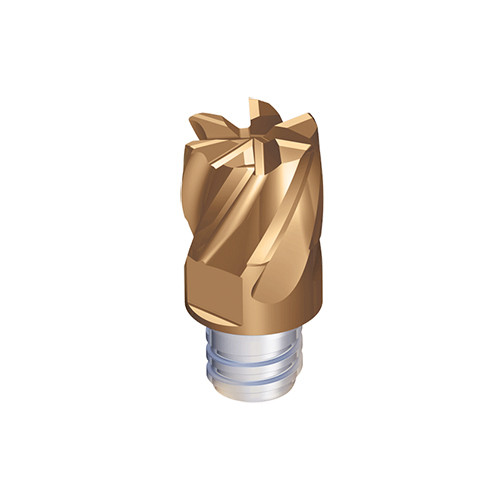

Taegutec ‎MXED120L09R05-06S08 TT5523

Description

Interchangeable solid carbide flat type end mill heads with 6 flute & various corner R for difficult-to-cut materials machining

Weight	0.0650 kg
barcode
Additional Information	Application:, Helical Interpolation, Rampdown, Shouldering, Side Plunging, Slotting, Solid Carbide End Mills, Trochoidal Milling, Flute Helix Angle (FHA): 30 Degrees Cutting Diameter (DC): 12 mm Grade: TT5523 Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN Flute Count (NOF): 6 Measurement Type: Metric Corner Radius (RE): 0.5 mm Cutting Edge Material: Carbide Connection Thread Nominal Size Machine Side (THSZMS): S08 Protruding Length (LPR): 16.5 mm Depth of Cut Maximum (APMX): 9 mm Body Material: Carbide Connection Diameter Machine Side (DCONMS): 11.7 mm Unit: M Functional Length (LF): 16.5 mm
