Taegutec ‎MXED250L22R20-10S15 TT5523

Description

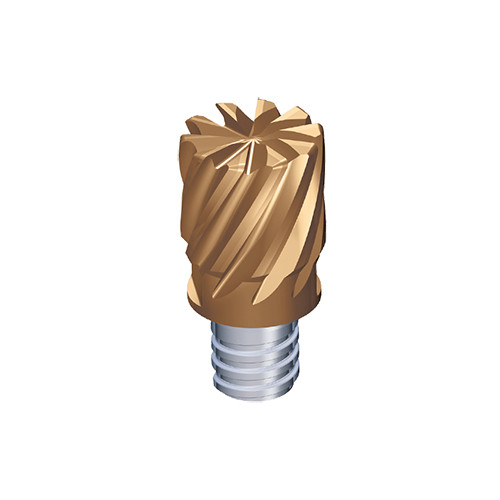

Interchangeable Solid carbide flat type end mill heads with 8 flute & various corner R for difficult-to-cut materials machining

Weight	0.2830 kg
barcode
Additional Information	Application:, Helical Interpolation, Rampdown, Shouldering, Side Plunging, Slotting, Solid Carbide End Mills, Trochoidal Milling, Flute Helix Angle (FHA): 30 Degrees Cutting Diameter (DC): 25 mm Grade: TT5523 Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN Flute Count (NOF): 10 Measurement Type: Metric Corner Radius (RE): 2 mm Cutting Edge Material: Carbide Connection Thread Nominal Size Machine Side (THSZMS): S15 Protruding Length (LPR): 37 mm Depth of Cut Maximum (APMX): 22 mm Body Material: Carbide Connection Diameter Machine Side (DCONMS): 23.9 mm Unit: M Functional Length (LF): 37 mm
