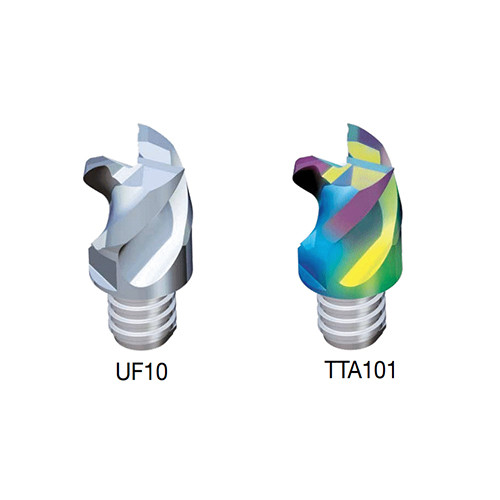

Taegutec MXEE080L05R05A03S05 UF10

Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Flute Helix Angle (FHA): 45 Degrees
Cutting Diameter (DC): 8 mm
Grade: UF10
Applicable Material:, Steel, Stainless Steel, Aluminum / Non-Ferrous Materials, Coating: Uncoated
Flute Count (NOF): 3
Measurement Type: Metric
Corner Radius (RE): 0.5 mm
Cutting Edge Material: Carbide
Connection Thread Nominal Size Machine Side (THSZMS): S05
Protruding Length (LPR): 10 mm
Depth of Cut Maximum (APMX): 5 mm
Body Material: Carbide
Connection Diameter Machine Side (DCONMS): 7.7 mm
Unit: M
Functional Length (LF): 10 mm
