Taegutec ‎MXEE080L05R10-06S05 TT5523

Description

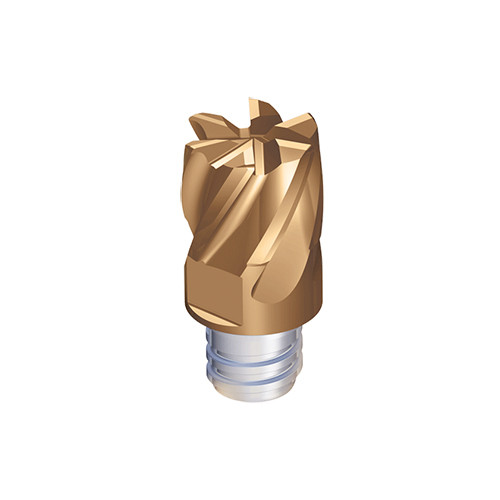

Interchangeable solid carbide flat type end mill heads with 6 flute & various corner R for difficult-to-cut materials machining

Weight	0.0133 kg
barcode
Additional Information	Application:, Helical Interpolation, Rampdown, Shouldering, Side Plunging, Slotting, Solid Carbide End Mills, Trochoidal Milling, Flute Helix Angle (FHA): 45 Degrees Cutting Diameter (DC): 8 mm Grade: TT5523 Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN Flute Count (NOF): 6 Measurement Type: Metric Corner Radius (RE): 1 mm Cutting Edge Material: Carbide Connection Thread Nominal Size Machine Side (THSZMS): S05 Protruding Length (LPR): 10 mm Depth of Cut Maximum (APMX): 5 mm Body Material: Carbide Connection Diameter Machine Side (DCONMS): 7.7 mm Unit: M Functional Length (LF): 10 mm
