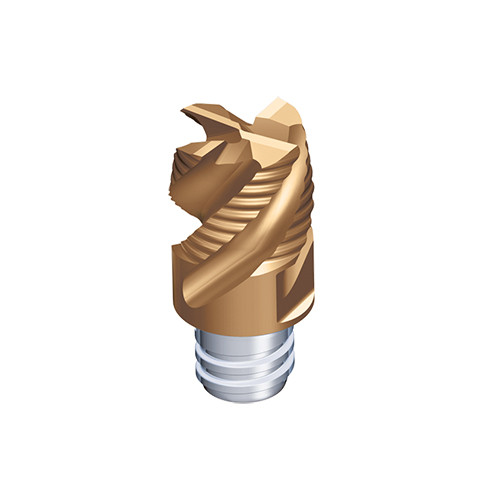

Taegutec MXEE100L07C30R04S06 TT5523

Description

‎Interchangeable solid carbide flat type roughing end mill heads with serrated cutting edges & 4-6 flutes

Weight	0.0190 kg
barcode
Additional Information	Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Flute Helix Angle (FHA): 45 Degrees Cutting Diameter (DC): 10 mm Grade: TT5523 Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN Flute Count (NOF): 4 Measurement Type: Metric Connection Thread Nominal Size Machine Side (THSZMS): S06 Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 7 mm Protruding Length (LPR): 13 mm Connection Diameter Machine Side (DCONMS): 9.7 mm Body Material: Carbide Functional Length (LF): 13 mm Unit: M
