Taegutec MXEE100L07C40I04S06 TT5523

Description

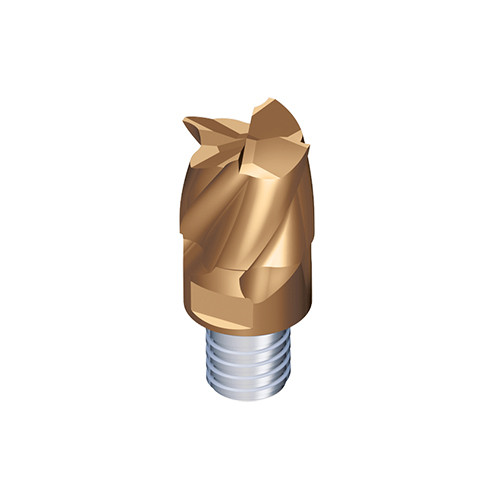

Interchangeable solid carbide flat type end mill heads with 4 flute unequal spacing of cutting edges for less vibration

Weight	0.0180 kg
barcode

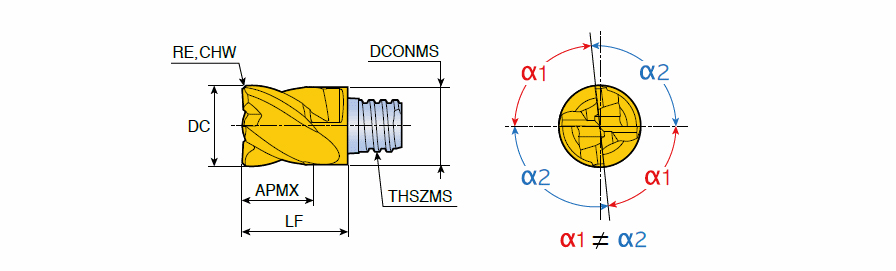

Additional Information	Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Flute Helix Angle (FHA): 38 Degrees Cutting Diameter (DC): 10 mm Grade: TT5523 Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN Flute Count (NOF): 4 Measurement Type: Metric Corner Radius (RE): – Cutting Edge Material: Carbide Connection Thread Nominal Size Machine Side (THSZMS): S06 Protruding Length (LPR): 13 mm Depth of Cut Maximum (APMX): 7 mm Body Material: Carbide Connection Diameter Machine Side (DCONMS): 9.7 mm Unit: M Functional Length (LF): 13 mm
