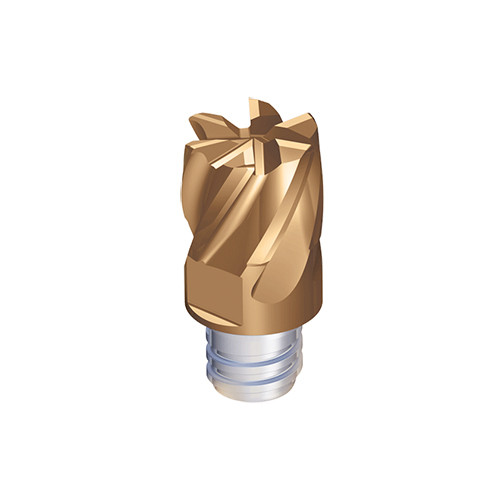

Taegutec ‎MXEE100L07R05-06S06 TT5523

Description

Interchangeable solid carbide flat type end mill heads with 6 flute & various corner R for difficult-to-cut materials machining

Weight	0.0190 kg
barcode
Additional Information	Application:, Helical Interpolation, Rampdown, Shouldering, Side Plunging, Slotting, Solid Carbide End Mills, Trochoidal Milling, Flute Helix Angle (FHA): 45 Degrees Cutting Diameter (DC): 10 mm Grade: TT5523 Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN Flute Count (NOF): 6 Measurement Type: Metric Corner Radius (RE): 0.5 mm Cutting Edge Material: Carbide Connection Thread Nominal Size Machine Side (THSZMS): S06 Protruding Length (LPR): 13 mm Depth of Cut Maximum (APMX): 7 mm Body Material: Carbide Connection Diameter Machine Side (DCONMS): 9.7 mm Unit: M Functional Length (LF): 13 mm
