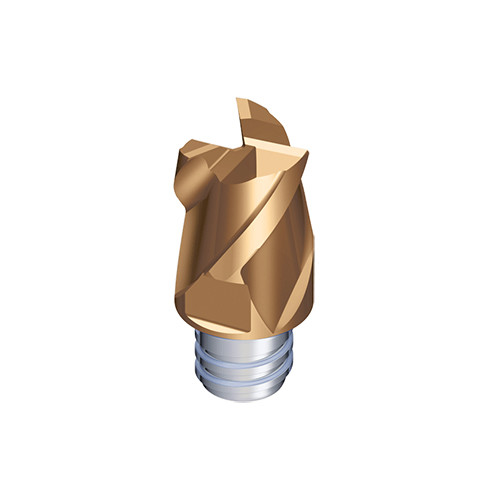

Taegutec ‎MXEE117L07R03-03S08 TT5523

Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Flute Helix Angle (FHA): 38 Degrees
Cutting Diameter (DC): 11.7 mm
Grade: TT5523
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN
Flute Count (NOF): 3
Measurement Type: Metric
Corner Radius (RE): 0.3 mm
Cutting Edge Material: Carbide
Connection Thread Nominal Size Machine Side (THSZMS): S08
Protruding Length (LPR): 16.5 mm
Depth of Cut Maximum (APMX): 7 mm
Body Material: Carbide
Connection Diameter Machine Side (DCONMS): 11.7 mm
Unit: M
Functional Length (LF): 16.5 mm
