Taegutec MXEE120L09R05A02S08 UF10

Description

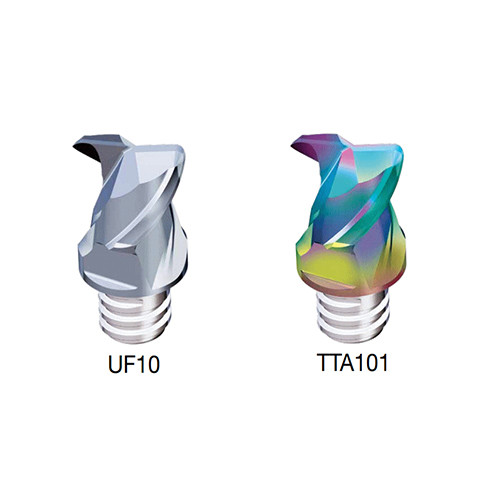

Interchangeable solid carbide flat type end mill heads with 2 flute & various corner radii for Aluminum machining

Weight	0.0335 kg
barcode
Additional Information	Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Flute Helix Angle (FHA): 45 Degrees Cutting Diameter (DC): 12 mm Grade: UF10 Applicable Material:, Steel, Stainless Steel, Aluminum / Non-Ferrous Materials, Coating: Uncoated Flute Count (NOF): 2 Measurement Type: Metric Corner Radius (RE): 0.5 mm Cutting Edge Material: Carbide Connection Thread Nominal Size Machine Side (THSZMS): S08 Protruding Length (LPR): 16.5 mm Depth of Cut Maximum (APMX): 9 mm Body Material: Carbide Connection Diameter Machine Side (DCONMS): 11.7 mm Unit: M Functional Length (LF): 16.5 mm
