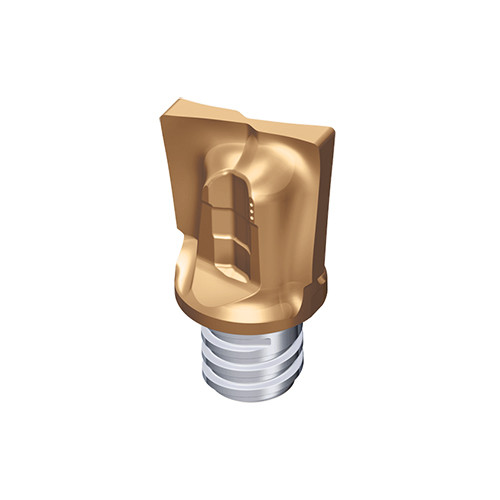

Taegutec ‎MXGC080L08R04-02S05 TT5523

Application:, Counter Boring, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Flute Helix Angle (FHA): 10 Degrees
Cutting Diameter (DC): 8 mm
Grade: TT5523
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN
Flute Count (NOF): 2
Measurement Type: Metric
Corner Radius (RE): 0.4 mm
Cutting Edge Material: Carbide
Connection Thread Nominal Size Machine Side (THSZMS): S05
Protruding Length (LPR): 10 mm
Depth of Cut Maximum (APMX): 7.7 mm
Body Material: Carbide
Connection Diameter Machine Side (DCONMS): 7.6 mm
Unit: M
Functional Length (LF): 10 mm
