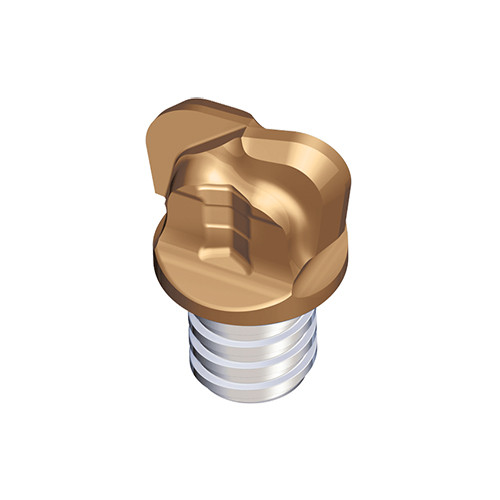

Taegutec ‎MXRB200L11R50-02S12 TT5523

Application:, Drill Mill, Helical Interpolation, Profiling, Rampdown, Slotting, Solid Carbide End Mills, Step down machining, Flute Helix Angle (FHA): 0 Degrees
Cutting Diameter (DC): 20 mm
Grade: TT5523
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN
Flute Count (NOF): 2
Measurement Type: Metric
Corner Radius (RE): 5 mm
Cutting Edge Material: Carbide
Connection Thread Nominal Size Machine Side (THSZMS): S12
Protruding Length (LPR): 17.3 mm
Depth of Cut Maximum (APMX): 11.3 mm
Body Material: Carbide
Connection Diameter Machine Side (DCONMS): 18.3 mm
Unit: M
Functional Length (LF): 17.3 mm
