Taegutec ‎MXRD100L05R30-06S06 TT5523

Description

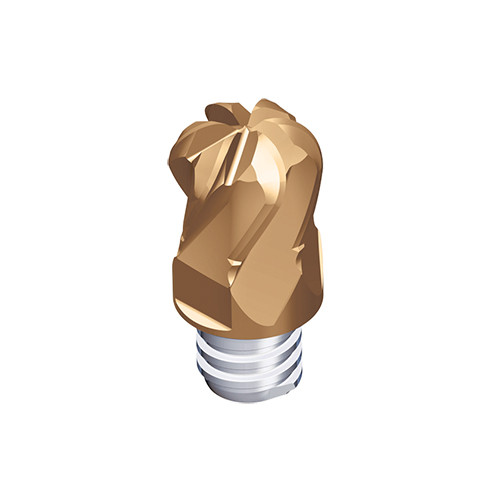

Interchangeable solid carbide end mill heads with 6 flute, big corner radius & 7° relief angle

Weight	0.0185 kg
barcode
Additional Information	Application:, Helical Interpolation, Profiling, Rampdown, Solid Carbide End Mills, Step down machining, Flute Helix Angle (FHA): 30 Degrees Cutting Diameter (DC): 10 mm Grade: TT5523 Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: AlTiN Flute Count (NOF): 6 Measurement Type: Metric Corner Radius (RE): 3 mm Cutting Edge Material: Carbide Connection Thread Nominal Size Machine Side (THSZMS): S06 Protruding Length (LPR): 13 mm Depth of Cut Maximum (APMX): 5 mm Body Material: Carbide Connection Diameter Machine Side (DCONMS): 9.7 mm Unit: M Functional Length (LF): 13 mm
