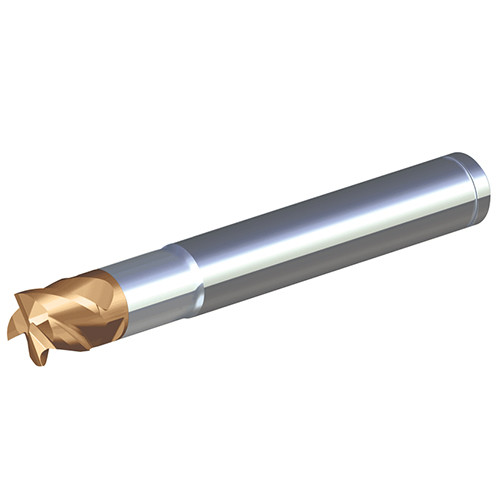

Carbide shanks with step neck & internal coolant hole
Additional information
Weight
0.0800 kg
Dimensions
barcode
Additional Information

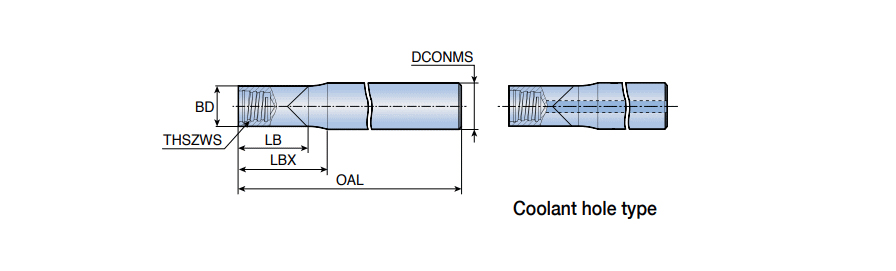

Connection Thread Nominal Size Workpiece Side (THSZWS): S06
Body Diameter (BD): 9.6 mm
Connection Diameter Machine Side (DCONMS): 10 mm
Body Length (LB): 18.5 mm
Material: Carbide
Measurement Type: Metric
Overall Length (OAL): 70 mm
Body Material: Steel
Body Length Maximum (LBX): 20 mm
Unit: M
Shank Type: Round
