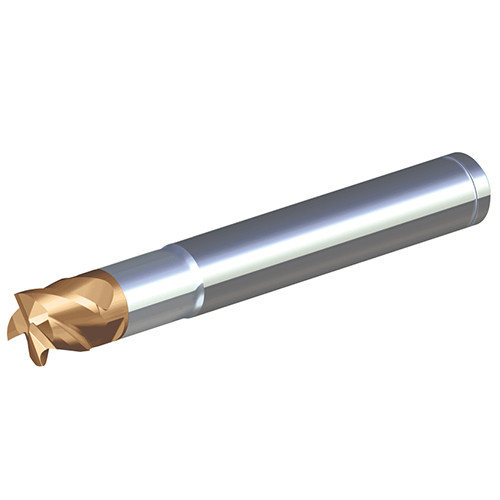

Carbide shanks with step neck & internal coolant hole
Additional information
Weight
0.1260 kg
Dimensions
barcode
Additional Information

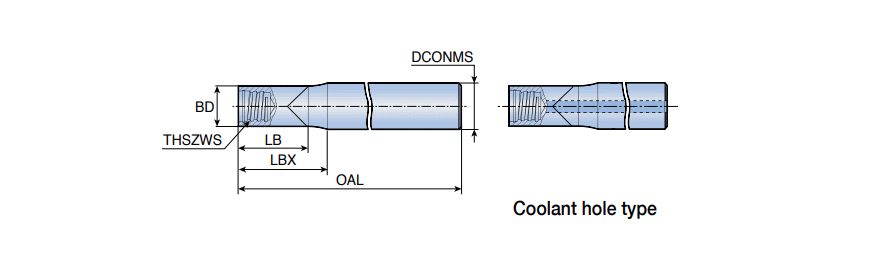

Connection Thread Nominal Size Workpiece Side (THSZWS): S08
Body Diameter (BD): 11.5 mm
Connection Diameter Machine Side (DCONMS): 12 mm
Body Length (LB): 37 mm
Material: Carbide
Measurement Type: Metric
Overall Length (OAL): 90 mm
Body Material: Steel
Body Length Maximum (LBX): 40 mm
Unit: M
Shank Type: Round
