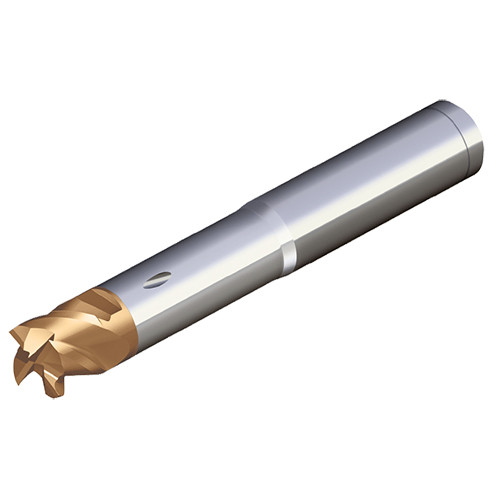

Tungsten straight shanks with stepped neck & internal coolant hole for MAXIRUSH milling heads
Additional information
Weight
0.2150 kg
Dimensions
barcode
Additional Information

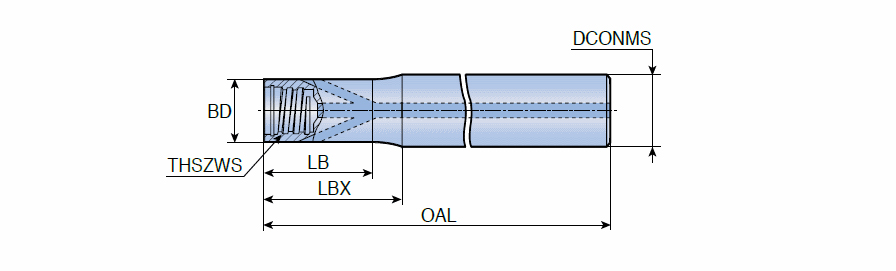

Connection Thread Nominal Size Workpiece Side (THSZWS): S10
Body Diameter (BD): 15.2 mm
Connection Diameter Machine Side (DCONMS): 16 mm
Body Length (LB): 18.5 mm
Material: Tungsten
Measurement Type: Metric
Overall Length (OAL): 70 mm
Body Material: Steel
Body Length Maximum (LBX): 20 mm
Unit: M
Shank Type: Round
