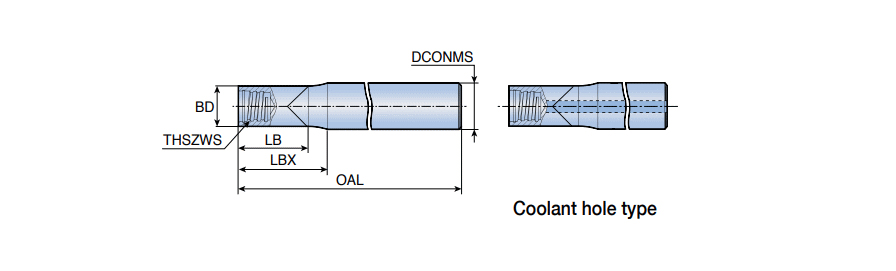

Carbide shanks with step neck & internal coolant hole
Additional information
Weight
0.0800 kg
Dimensions
barcode
Additional Information
Connection Thread Nominal Size Workpiece Side (THSZWS): S10
Body Diameter (BD): 15.2 mm
Connection Diameter Machine Side (DCONMS): 16 mm
Body Length (LB): 98 mm
Material: Carbide
Measurement Type: Metric
Overall Length (OAL): 150 mm
Body Material: Steel
Body Length Maximum (LBX): 100 mm
Unit: M
Shank Type: Round
