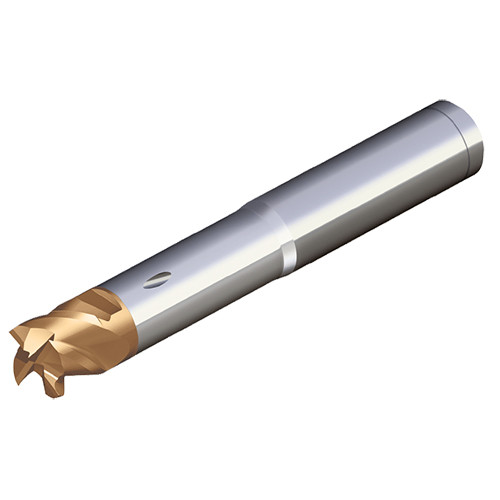

Tungsten straight shanks with stepped neck & internal coolant hole for MAXIRUSH milling heads
Additional information
Weight
0.4120 kg
Dimensions
barcode
Additional Information

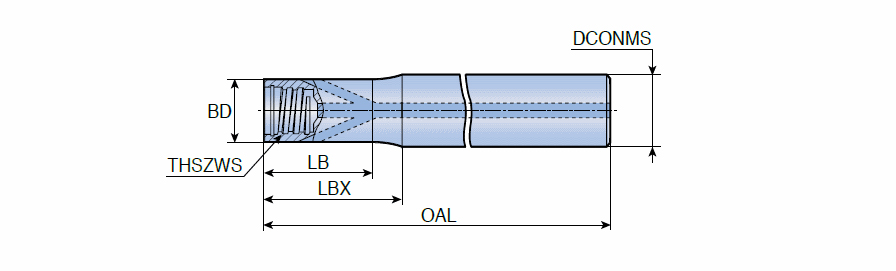

Connection Thread Nominal Size Workpiece Side (THSZWS): S12
Body Diameter (BD): 18.3 mm
Connection Diameter Machine Side (DCONMS): 20 mm
Body Length (LB): 37 mm
Material: Tungsten
Measurement Type: Metric
Overall Length (OAL): 90 mm
Body Material: Steel
Body Length Maximum (LBX): 40 mm
Unit: M
Shank Type: Round
