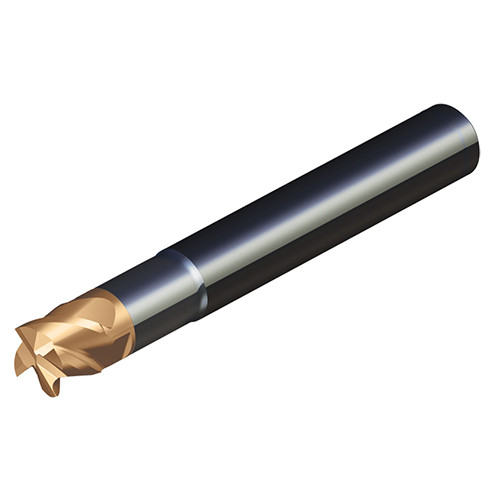

Steel shanks with step neck & internal coolant hole.
Additional information
Weight
0.2590 kg
Dimensions
barcode
Additional Information

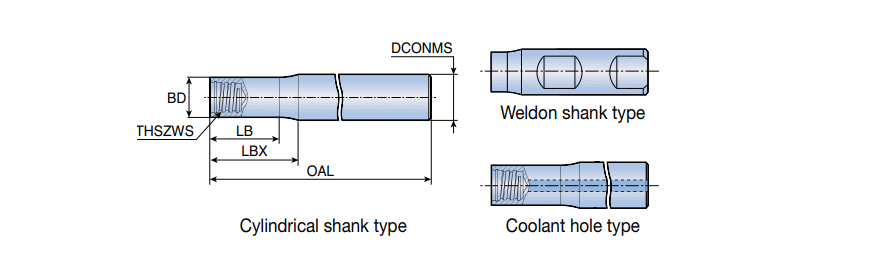

Connection Thread Nominal Size Workpiece Side (THSZWS): S12
Body Diameter (BD): 18.3 mm
Connection Diameter Machine Side (DCONMS): 25 mm
Body Length (LB): –
Material: Steel
Measurement Type: Metric
Overall Length (OAL): 75 mm
Body Material: Steel
Body Length Maximum (LBX): 6 mm
Unit: M
Shank Type: Weldon
