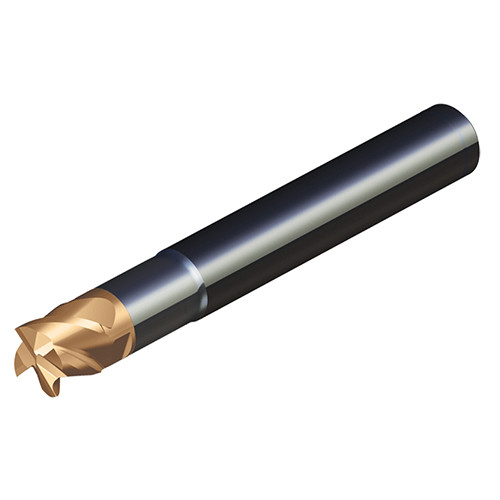

Steel shanks with step neck & internal coolant hole.
Additional information
Weight
0.4950 kg
Dimensions
barcode
Additional Information

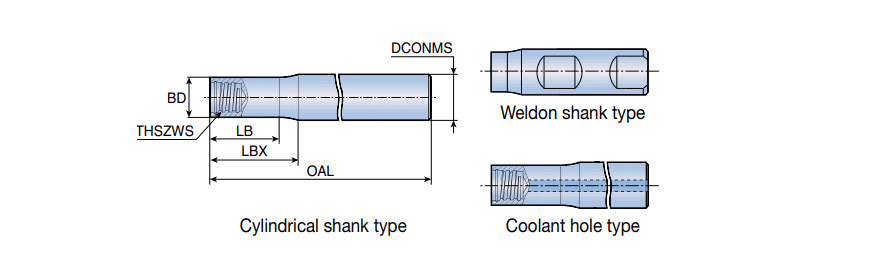

Connection Thread Nominal Size Workpiece Side (THSZWS): S15
Body Diameter (BD): 23.9 mm
Connection Diameter Machine Side (DCONMS): 25 mm
Body Length (LB): 33 mm
Material: Steel
Measurement Type: Metric
Overall Length (OAL): 135 mm
Body Material: Steel
Body Length Maximum (LBX): 35 mm
Unit: M
Shank Type: Round
