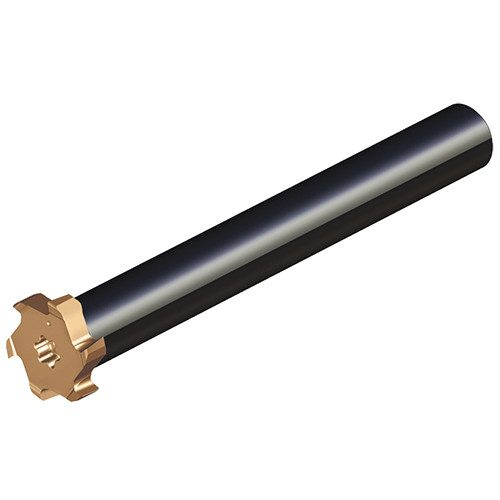

Straight steel shanks for MAXIRUSH TST & TTB slotting heads
Additional information
Weight
0.0750 kg
Dimensions
barcode
Additional Information

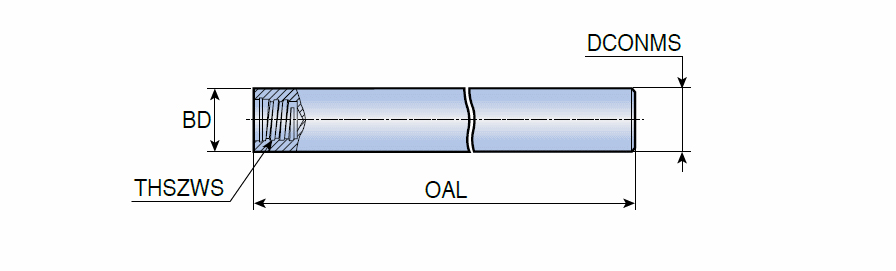

Connection Thread Nominal Size Workpiece Side (THSZWS): S08
Body Diameter (BD): 12 mm
Connection Diameter Machine Side (DCONMS): 12 mm
Measurement Type: Metric
Material: Steel
Body Material: Steel
Overall Length (OAL): 90 mm
Unit: M
Shank Type: Round
